Solar, Wind & Hybrid Site Equipment Reference

Section 301 tariffs and domestic-content incentives are pulling inverter manufacturing toward the US, and utility-scale module pricing has climbed as buyers weigh tariff exposure against domestic-content bonuses. Both trends show up directly in the lead times and pricing on this catalog.

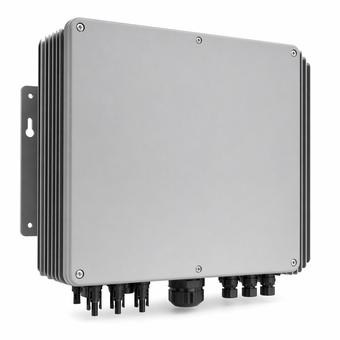

Inverters, DC:AC ratio, and clipping

Most utility-scale sites now oversize the DC array relative to the inverter's AC rating on purpose — a DC:AC (or ILR, inverter loading ratio) of 1.2–1.3 is typical. The inverter simply caps ("clips") output on the highest-irradiance hours rather than running below capacity most of the day, and the energy lost to clipping is usually smaller than the energy gained from the extra DC capacity everywhere else. Getting the ratio right is a sizing problem before it's a procurement problem — run it on the solar string sizing calculator before locking a BOM. See Inverter Clipping Ratio Explained for the full breakdown.

Fixed-tilt vs. tracker: what changes on the BOM

Single-axis trackers add torque tubes, slew drives, motors, and controllers to what a fixed-tilt racking system doesn't need at all — more equipment, more moving parts, more O&M line items. In exchange, trackers typically add somewhere around 15–25% more annual energy yield versus fixed-tilt at the same DC capacity, which is why they now dominate new utility-scale ground-mount design in most of the US despite the added structural BOS complexity. The right call comes down to land cost, wind/snow loading at the site, and whether the extra yield outweighs the extra maintenance surface.

GSU transformers, MV collection, and interconnection

A solar or wind site's GSU (generator step-up) transformer steps the site's collection voltage up to transmission level at the point of interconnection — a different role than a data center's on-site GSU, but the same equipment class and the same multi-year lead times; see Pad-Mount vs. GSU Transformers for how the two compare. Getting from an interconnection request to an executed agreement is frequently the longer critical-path item on a renewables project, not the equipment itself — see The Grid Interconnection Process, Explained, or the region-specific timeline for MISO and ERCOT, the two regions carrying the most new wind, solar, and storage interconnection volume.

FEOC and Buy America, together

FEOC material-assistance documentation and Buy America / BABA domestic-content rules are two separate federal programs that often apply to the same project at once — one triggered by ownership/control of the supply chain, the other by how the project is funded. See FEOC Compliance for Solar & Storage for what to document for ITC eligibility, and Buy America / BABA for the funding-triggered version of the same problem.
