Utility-Scale Battery Storage Reference

Turnkey pricing keeps falling — BloombergNEF's latest survey put the global average around $117/kWh, down roughly 31% year over year — though FEOC-compliant sourcing for US buyers chasing tax credits still carries a premium over that global average. At the same time, operators say the business itself has gotten more complex, shifting from simple energy arbitrage toward active risk management as markets like ERCOT mature.

The Storage sector covers DC block BESS units, PCS (power conversion system) and BMS, EMS, BESS fire suppression equipment, and thermal management — 212 configurations built to NFPA 855 and UL 9540A, configured and quoted against current lead times.

Sourcing storage components on a tax-credit-eligible project? See FEOC Compliance for Solar & Storage. Planning site layout around NFPA 855? See BESS Fire Safety Basics.

Duration and C-rate

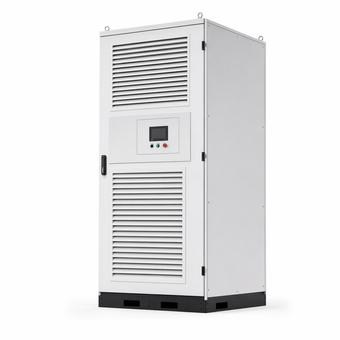

A "4-hour BESS" means the system can discharge its full rated power continuously for 4 hours — the industry shorthand for that is C-rate, where a 4-hour system is C/4 (a quarter of capacity per hour) and a 1-hour system is 1C. Duration is set first, then it drives how many DC blocks get specified for a given power (MW) rating — a 100 MW / 4-hour project needs roughly four times the DC block count of a 100 MW / 1-hour project at the same power electronics. Most new US utility-scale BESS is now specified at 4 hours or longer, largely to qualify for ITC stacking and to better match evening peak-demand windows as solar penetration grows. See BESS C-Rate Explained for why the C-rate the cells see differs from the headline figure.

Grid-forming vs. grid-following PCS

Most PCS (power conversion system) units installed to date are grid-following — they synchronize to a voltage and frequency the grid is already providing. Grid-forming PCS can establish that voltage and frequency itself, the way a spinning generator does, which matters increasingly on grids adding large amounts of inverter-based renewable and storage capacity that need to keep the grid stable without conventional generation doing all the work. Grid-forming PCS currently quotes around 32 weeks and is increasingly specified on new interconnection requests as utilities update their technical requirements.

Augmentation: planning for capacity fade

Lithium battery capacity fades over the life of a project — a system sized to meet its nameplate rating on day one won't still meet it in year 10 without adding capacity back. Augmentation is the practice of specifying and budgeting for additional DC blocks partway through the project's life to offset that fade and hold the contracted capacity, and it's now standard practice to plan for in the original procurement rather than treat as a surprise mid-life expense. See BESS Augmentation Explained for how fade actually happens and how a phased plan gets built.

Fire suppression, BMS, and EMS

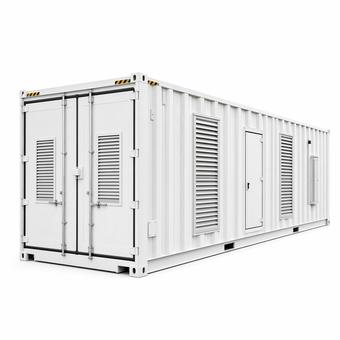

NFPA 855 and UL 9540A drive both equipment selection and site layout — clean-agent and aerosol suppression systems are common choices for containerized BESS, sized and spaced according to the same test data that sets separation distances between units; see BESS Fire Safety Basics for how the two standards fit together. Inside the system, the BMS (battery management system) manages cell-level voltage, temperature, and balancing within each block, while the EMS (energy management system) operates at the plant level — dispatch, market participation, and coordinating multiple DC blocks and PCS units as one asset.
