Data Center Power Equipment Reference

Power distribution: pad-mount vs. GSU, and where switchgear fits

Most campuses run two distinct transformer types with very different jobs. A pad-mount transformer steps utility service down to the low- or medium-voltage distribution used inside the building — it's the workhorse spec that shows up dozens of times across a large campus, currently quoting around 85 weeks. A GSU (generator step-up) transformer does the opposite job at the utility interconnection point, and on a campus with on-site generation or a dedicated substation it's typically the single highest-value, longest-lead item on the whole electrical BOM — current lead times run past 140 weeks. Confusing the two on an early spec sheet is a common, expensive mistake; see Pad-Mount vs. GSU Transformers for the full breakdown, or How to Read a Transformer Nameplate once you're comparing specific units.

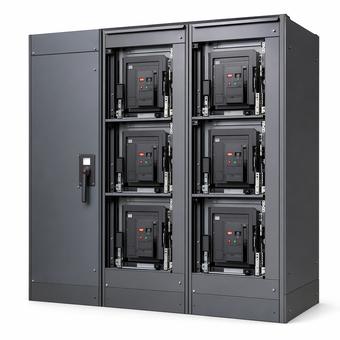

MV switchgear sits between the transformers and the distribution system, and it comes in two families that aren't interchangeable on a spec sheet: metal-clad, built around draw-out breakers for easier maintenance and higher arc-flash containment, and metal-enclosed, a lower-cost fixed-breaker design common on less critical distribution. Data center design almost always specifies metal-clad for anything upstream of critical IT load — see Switchgear Compartment Types Explained for what's actually inside each, and Short-Circuit Studies & Breaker Coordination for how breakers get sized and coordinated once switchgear is on the one-line.

Redundancy: N, N+1, and 2N

Every data center power design gets described by a redundancy notation before anything else. N is just enough capacity to run the load, with zero spare. N+1 adds one extra unit of whatever's being sized — a UPS module, a generator, a cooling unit — so a single failure doesn't take the load down. 2N duplicates the entire path: two independent UPS systems, two independent utility feeds, two of everything, so a full system can go offline for maintenance without ever touching the load. The redundancy level drives equipment count directly — a 2N electrical design roughly doubles the switchgear, UPS, and generator line items on the BOM compared to an N design of the same IT capacity — which is why redundancy level is usually the first number in a capacity conversation, not an afterthought. See N+1 vs. 2N Redundancy Explained for what each scheme survives and costs.

Backup power and cooling

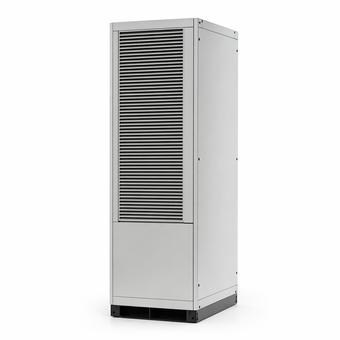

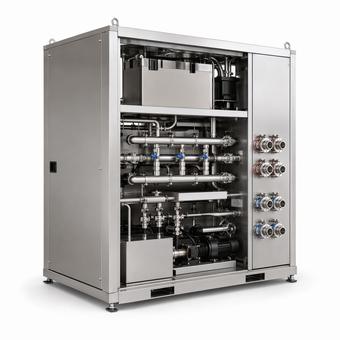

Generators and UPS cover two different failure windows. UPS batteries bridge the seconds to low minutes between a utility outage and generators reaching full speed and taking the load; the generators then carry the full load for as long as fuel holds out. Diesel generator lead times are running around 90 weeks industry-wide. On the mechanical side, rising GPU rack densities are pushing new builds and retrofits from air cooling toward direct-to-chip liquid cooling, with CDUs (coolant distribution units) becoming a standard electrical/mechanical BOM line rather than an exception — the liquid cooling market is on pace for roughly $29B by 2033 as this shift plays out — see Liquid Cooling vs. Air Cooling for how direct-to-chip, immersion, and rear-door heat exchangers compare. PUE (power usage effectiveness — total facility power divided by IT power) is the standard efficiency metric tracked across it: a lower PUE means less power spent on cooling and distribution overhead per watt actually delivered to compute. See PUE Explained for the full formula and what actually drives it down.

Interconnection, grounding, and compliance

For campuses adding on-site generation or requesting new utility capacity, the interconnection queue is frequently a longer critical-path item than any single piece of equipment — see The Grid Interconnection Process, Explained, or the PJM-specific timeline if the campus sits in the mid-Atlantic. Grounding & Bonding Basics and Arc-Flash Boundary Basics cover the two safety-critical checks every data center electrical design has to close out before energizing. And for projects touching federal funding or incentive programs, Buy America / BABA sourcing-documentation rules can constrain vendor selection well before a spec sheet is finalized.
