N+1 vs. 2N Redundancy Explained

N is the capacity the load needs, with nothing to spare. Every redundancy scheme is described relative to it. N+1 adds one spare unit to a single system. 2N builds two complete, independent systems, each able to carry the whole load alone. The difference sounds like a matter of quantity, but it's a difference in what can fail: N+1 survives the loss of a component, while 2N survives the loss of an entire path.

The notations

"2N+1" is used inconsistently. Some specifications mean 2(N+1), others mean 2N plus one shared spare. When a document uses it, check what it actually means before comparing designs.

What each scheme survives

*Unless each side has its own spare: that's the case 2(N+1) exists for. The row that matters most is the third one. An N+1 UPS system still has a single output bus, a single paralleling control system and usually a single downstream switchboard. Any of those can take the whole system down, however many spare modules sit behind it.

What it costs: a worked example

A 900 kW critical load, built from 500 kW UPS modules:

Every figure is arithmetic. N needs 900 ÷ 500 = 1.8, so two modules. 2N doubles the whole system, so each side carries 450 kW of its 1,000 kW. With one module out, N+1 runs at 900 ÷ 1,000 = 90%, and so does each side of 2(N+1) with one module out while the other side is down.

Going from N+1 to 2N adds a module in this example, but the real cost is everything else that gets duplicated: the second output switchboard, a second set of distribution, and second feeders. Across switchgear, UPS and distribution, a 2N electrical design roughly doubles the line items of an N design of the same IT capacity.

2N only works to the rack if the load has two cords

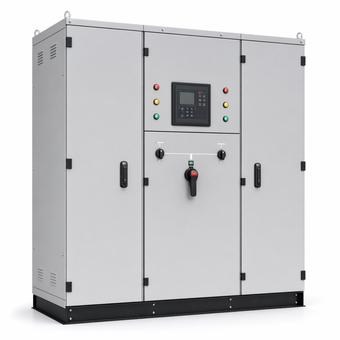

Two independent systems protect the load only if the load can draw from both. Most IT equipment has dual power supplies, fed from separate A and B circuits. Each supply, and each circuit, has to carry the whole device on its own if the other side drops. In normal operation, neither side should be loaded past half of what it's allowed to carry. That is an operational discipline, not a design feature, and exceeding it silently turns a 2N room into one that trips when either side fails. Single-corded equipment needs a static transfer switch or rack transfer switch to get the same benefit.

Redundancy is per subsystem

A facility doesn't have one redundancy level. It has one per subsystem: utility feeds, generators, UPS, distribution, cooling. The weakest one sets what the facility can actually survive. N+1 generators feeding a single UPS path aren't N+1 overall, and a 2N UPS feeding a single cooling plant still depends on that plant. Cooling redundancy matters as much as electrical here: a lost chiller or CDU takes IT load down almost as reliably as a lost UPS, only more slowly.

How this relates to tiers

Data center tier and rating systems (the Uptime Institute Tier Standard, and ANSI/TIA-942 ratings) are defined by outcomes, not by notations. Concurrent maintainability means any component or path can be taken out for planned work without affecting the load. Fault tolerance means the load survives an unplanned failure of any single component or path. A 2N design is a common route to fault tolerance, but the label alone guarantees neither. A shared control system, a common upstream breaker or a single fuel supply can defeat it.

Choosing between N+1 and 2N

• N+1 suits loads that can tolerate a rare outage from a shared-component failure, or that have redundancy at a higher level, such as workloads replicated across sites. It installs the least spare capacity and runs at the highest utilization.
• 2N suits loads where any outage is costly, and where planned maintenance must never need a shutdown window. It needs dual-corded load, or transfer switches, and disciplined A/B loading.
• 2(N+1) covers the one case 2N doesn't: a failure on one side while the other is in maintenance. It's also the most expensive.
• Distributed schemes such as 4N/3 get survival of any single-system loss with less installed capacity than 2N. Four systems at 75% load is 1.33× the load installed, against 2.0× for 2N. The cost is more complex load assignment and transfer arrangements.

Common mistakes

• Counting spare modules and calling it fault tolerant. N+1 modules on a single output bus don't survive a bus fault.
• Mixing redundancy levels without saying so. A 2N UPS behind N+1 generators behind a single utility feed is not a 2N facility.
• Loading A and B sides past half. It works every day until the day one side is lost.
• Forgetting cooling. Electrical redundancy is only as good as the thermal plant it keeps running.
• Reading 2N+1 without checking which one it means. The term is used for two different designs.
