Short-Circuit Studies & Breaker Coordination Basics
A quick fault-current estimate tells you whether a breaker is roughly in the right range. A short-circuit study — and the coordination study that follows it — is what actually confirms every device on the system is rated correctly and trips in the right order.
Key takeaways
- A short-circuit study calculates fault current at every bus from the utility's actual source impedance, then checks each device's interrupting rating against it.
- An infinite-source estimate, like the fault current calculator, is only a first pass.
- Both the short-circuit and coordination studies must be redone when the system changes: a new transformer, a resized breaker, a longer feeder or added motor load.
On this page · 6 sections
What a short-circuit study actually calculates
A short-circuit study calculates the available fault current at every bus in an electrical system — starting from the utility's actual source impedance (not an assumed infinite source), then adding the impedance of every transformer, cable, and busway in the path in series, down to each panel and piece of equipment. The output is a fault-current number at each location, which gets compared against the interrupting rating (AIC) of every breaker, fuse, and switchgear assembly at that location. Any device rated below the calculated fault current at its location is a real safety and code problem, not a formality.
Why an infinite-source estimate is only a first pass
Tools like the fault current calculator and the Practice Sandbox both use a simplified infinite-source method — they assume the utility source has zero impedance and ignore the impedance of the cable/feeder between the transformer and the point being checked. That's a deliberately conservative simplification for early sizing: real utility source impedance and real cable impedance both reduce available fault current somewhat versus the infinite-source number, and motor contribution during a fault can add to it at motor-heavy sites. An infinite-source estimate is useful for catching an obviously wrong breaker selection early; it is not what gets stamped for actual equipment ratings.

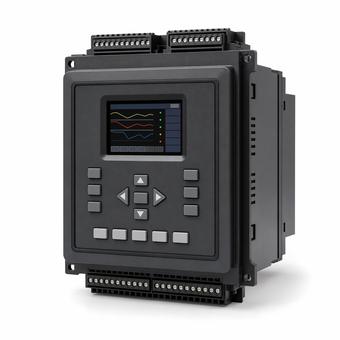

Breaker coordination: who trips first
Coordination (also called selective coordination) is a separate study layered on top of the fault-current numbers. It compares the time-current trip curve of every protective device against the devices immediately upstream and downstream of it, to confirm that during a fault, only the nearest upstream device trips — not a device further back that would black out a much larger part of the system. Properly coordinated devices "hand off" cleanly: a branch breaker clears a branch fault before the feeder breaker feeding it even notices; a feeder breaker clears a feeder fault before the main does.
| Study | Question it answers |
|---|---|
| Short-circuit study | Is every device's interrupting rating (AIC) high enough for the fault current it could actually see? |
| Coordination study | When a fault happens, does only the closest upstream device trip — or does it take out more of the system than necessary? |
| Arc-flash study | Given the fault current and how fast the device actually clears it, what's the incident energy exposure at that location? (See the arc-flash boundary basics guide.) |
Why this needs to be redone, not assumed current
Both studies are only valid for the system configuration they were performed against. Adding a transformer, resizing a breaker, extending a feeder, or adding significant motor load can all change the fault current and trip-curve relationships enough to invalidate the existing study. A common finding in electrical audits is equipment installed or modified after the last study without a re-check — which is exactly the gap between "someone studied this once" and "this reflects what's actually installed today."
Ground-fault coordination
Phase coordination isn't the whole study. On 480Y/277 V services, ground-fault protection has its own pickups, delays and curves, and they need coordinating too, or a downstream ground fault trips the service main. See Ground-Fault Protection Explained. Series-rated equipment can't be selectively coordinated for high-level faults, which is covered in Fully Rated vs. Series Rated Breakers.
Frequently asked questions
What does a short-circuit study actually calculate?
A short-circuit study calculates the available fault current at every bus in a system, working from the utility's actual source impedance through every transformer, cable, and busway in series down to each panel and piece of equipment. It's what confirms every breaker, fuse, and piece of switchgear has an interrupting rating equal to or greater than the fault current it could actually see.
Is an infinite-source fault current estimate the same as a short-circuit study?
No. An infinite-source estimate (assuming the utility source has zero impedance, ignoring cable impedance) is a useful first-pass sanity check for early sizing decisions, but it's not a substitute for a full study. Real utility source impedance, series cable/busway impedance, and motor contribution during a fault all typically reduce the available fault current somewhat from the infinite-source number, and a full study is what a licensed engineer stamps for actual equipment ratings and code compliance.
What is breaker coordination and why does it matter?
Breaker coordination (also called selective coordination) means arranging protective devices so that during a fault, only the breaker or fuse closest to the fault trips — not an upstream device that would black out a much larger part of the system. It's verified by comparing each device's time-current trip curve against the ones upstream and downstream of it, and it's a common finding to fail when devices are added or resized without re-checking the whole coordination study.
Next steps
The Data Centers and Industrial Supply sectors carry switchgear and breakers configured by interrupting rating, so the AIC number is visible before you commit to a spec — feed a real study's fault-current result straight into the configurator. Unfamiliar with a term above? Check the glossary, or see how %Z drives fault current in the transformer nameplate guide.
